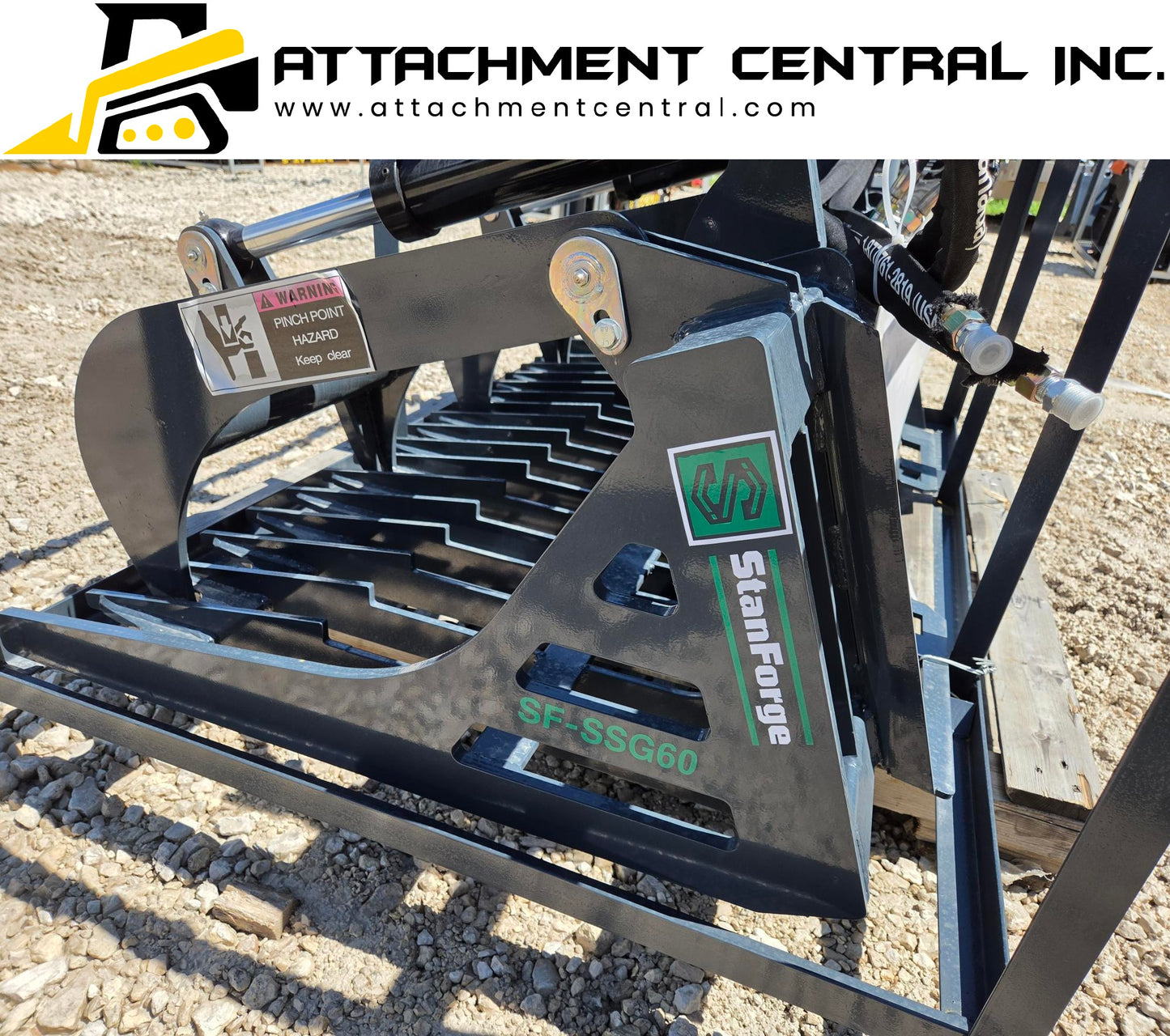

60" Skid Steer Skeleton Grapple Attachment TMG SSG60

60" Skid Steer Skeleton Grapple Attachment TMG SSG60

Brand New

https://tmgindustrial.ca/products/stanforge-60-skid-steer-skeleton-grapple-attachment-universal-mount-sf-ssg60?srsltid=AfmBOorArox-2fg0q0hs2gTlzlcIli8aBFG7SHNjOgLmOMGpU0LwDZjS

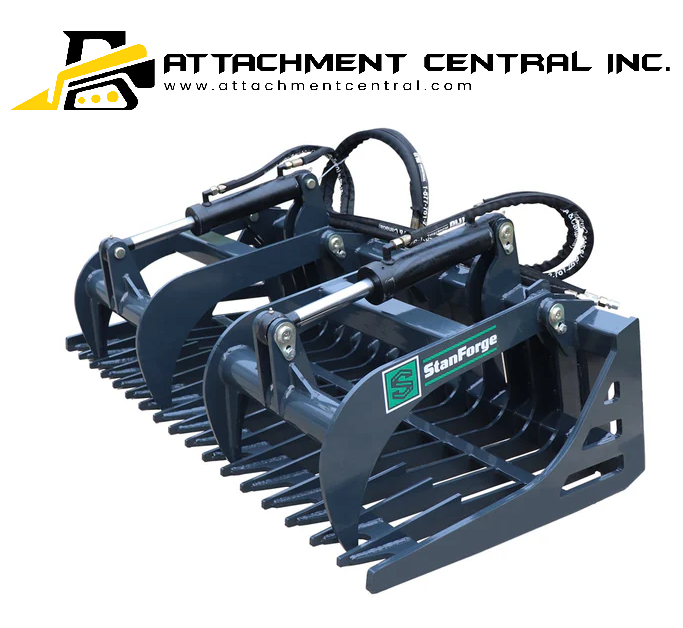

The SF-SSG60 Skid Steer Skeleton Rock Grapple features dual hydraulic cylinder arms that can produce a grappling capacity of up to 2860 lb. A versatile attachment for your skid steer, it can be used for a variety of applications, including brush and log pick up, recycling, rock raking, scrap metal sorting, and general material handling around your acreage, farm, or job site.
Equipped with a universal mount for easy hookup to your skid steer, this grapple enables quick and efficient workflow. A flat bottom design slides effortlessly over the ground, leaving the surface undisturbed, while reinforced frame beams provide heavy-duty construction capable of handling demanding projects.
With a 60" working width, the SF-SSG60 offers broad grappling capability for farms, commercial properties, and worksites. Fine serrated cutting edges and a skeleton tine bottom design allow loose debris to sift through easily, improving efficiency when transporting bulkier materials. Built to last, it features greasable pins and bushings for routine maintenance and comes with included hydraulic hoses and quick flat couplers for fast connection.

Features
2860 lb grappling capacity: Designed for heavy-duty material handling
59" working width: Skeleton tine base allows debris to sift through easily
34" arm opening: Handles varied brush, logs, and irregular debris
Dual hydraulic cylinder arms: Ensure stable and secure grappling performance
Included hydraulic hoses and flat face couplers: Enable quick and efficient setup
Universal mount: Provides fast, secure attachment to your skid steer

Specifications
Compatible with 30–60 HP skid steers
Mount: Universal skid steer mount
Working width: 59" (1500 mm)
Grapple capacity: 2860 lb (1300 kg)
Grapple arm opening: 34" (860 mm)
Number of hydraulic hoses: 2
Fitting: NPT 1/2" flat coupler
Hydraulic pressure: 2300–3600 PSI
Flow rate: 3–8 GPM
Overall dimension: 59" x 37.4" x 23.5" (L x W x H), 1500 x 950 x 597 mm
Product weight: 610 lb (277 kg)
